Low Loaders
QUAD 4-ROW SUSPENSION WIDENER RENTAL

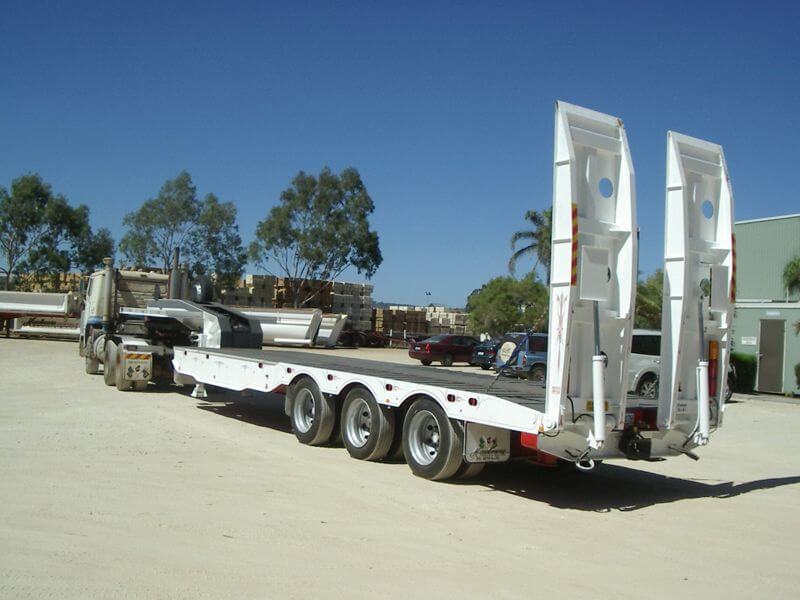

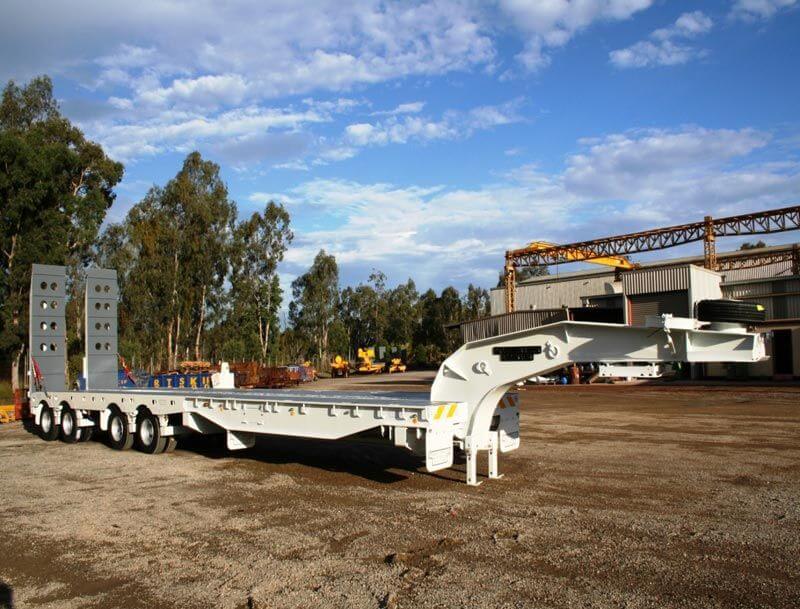

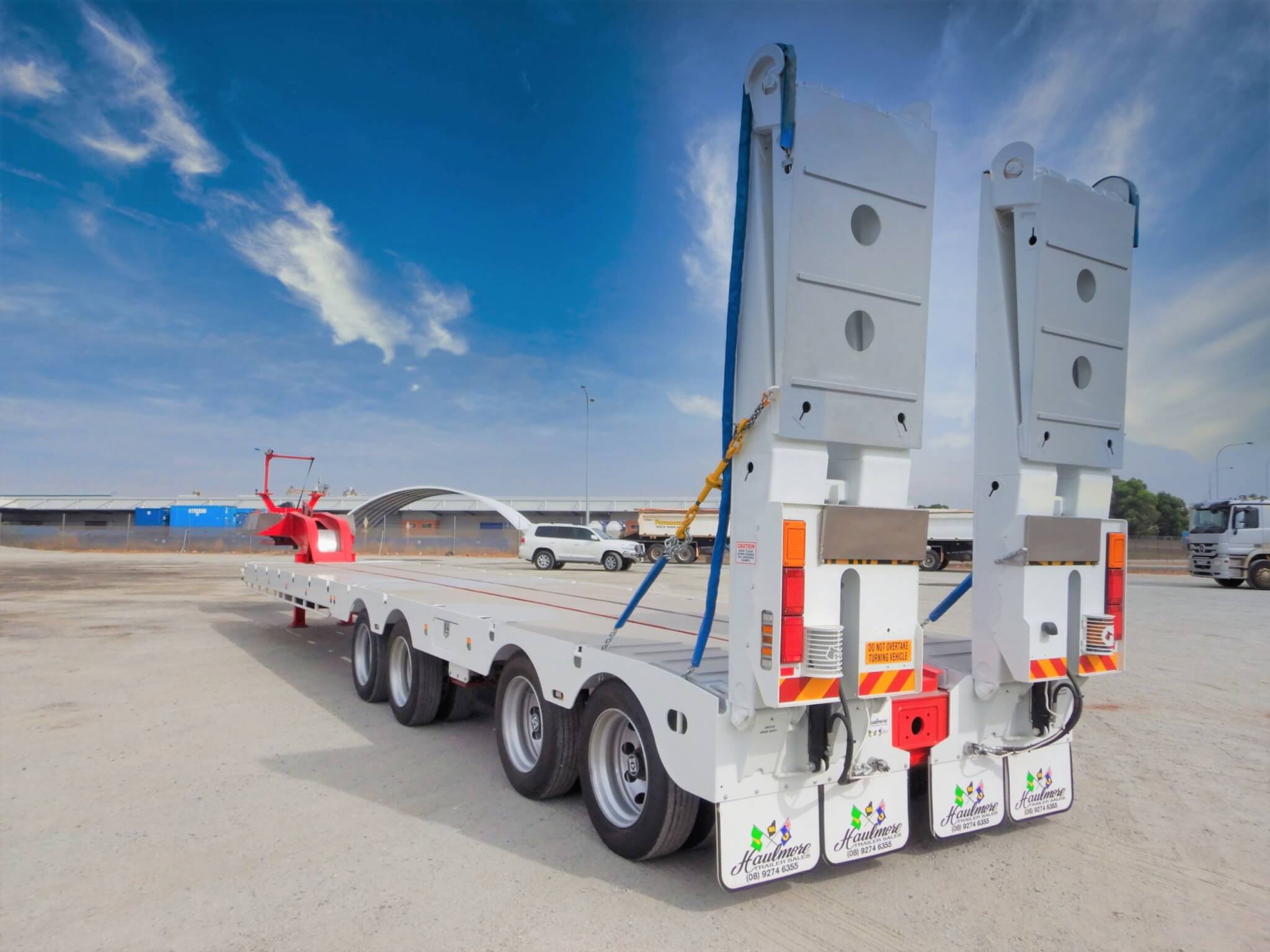

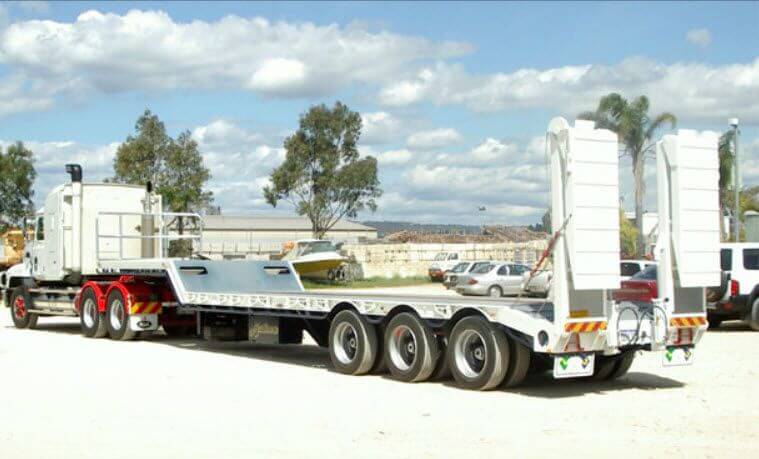

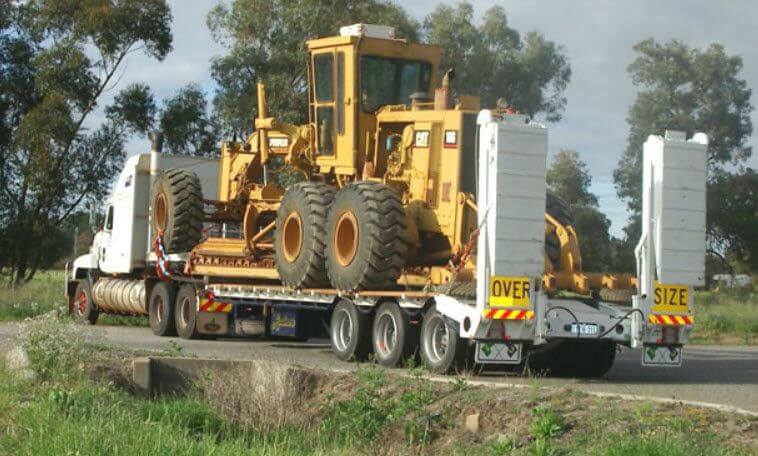

Quad 4-row suspension widening low loader for hire
Low loader and plant trailers available for hire from Haulmore Trailer Rentals have the following features: Air Suspension Or Conventional Spring Suspension From 30 Tonne Capacity Beaver Tails Hydraulic Ramps Out Riggers Gooseneck Decks Expandable Deck Hydraulic Ramp Platforms Hydraulic Recovery Winches 3 Rows Of 4 With Ramps 4 Rows Of 4 With Ramps 3 Rows Of 8 With Ramps Low Loader Loader Dollies Dollies – 2 Rows Of 4 Low Loader Loader Dollies Dollies – 2 Rows Of 8 New Drake Full Widener Trailer The Drake 4 rows of 4 full deck widener trailer is a new addition to our fleet and available for a minimum rental of one week. When Used In Conjunction With A 2 Rows Of 4 Low Loader Dolly – 48,000kgs When Used In Conjunction With A 3 Rows Of 4 Low Loader Dolly – 55,000kgs When Used In Conjunction With A 2 Rows Of 8 Low Loader Dolly – 63,000kgs Operating Tare Weight: – 15,840kgs Double Hung Ramps 4100mm X 900mm Wide Angle Of Approach 12° Hydraulic Power Pack: Electric Start To Operate The Deck Widening As Well As The Ramps MRWA: The Trailer Is Compliant With All MRWA Regulations
Inspect this trailer
The numbers
Specifications
Mass & Ratings
| Design rating | 75,000 kg |
|---|---|
| Tare weight | 15,840 kg |
| Payload | 34,000 kg |
Dimensions
| Deck length | 12306mm |
|---|
Running Gear
| Tyres | 255/70 Low Profile 16 Ply |
|---|---|
| Axle make | FUWA |
| Suspension | Drake Hydraulic |
| Axle configuration | quad (4 rows of 4) |
| Axle count | 4 |
Braking & Electrical
| Brake system | Drum brake |
|---|
Securing & Accessories
| King pin | 50mm / 90mm (removable) |
|---|
Compliance
| MRWA compliance | Compliant with all MRWA regulations |
|---|
Features and use cases
Key features
- Air Suspension Or Conventional Spring Suspension
- From 30 Tonne Capacity
- Beaver Tails
- Hydraulic Ramps
- Out Riggers
- Gooseneck Decks
- Expandable Deck
- Hydraulic Ramp Platforms
Built for
