Extendables · 2024
2024 Haulmore Tri Axle Flat Extendable Trailer
New For sale Price on application
Tri-axle flat extendable deck, 13.7 m closed extending to 22 m open

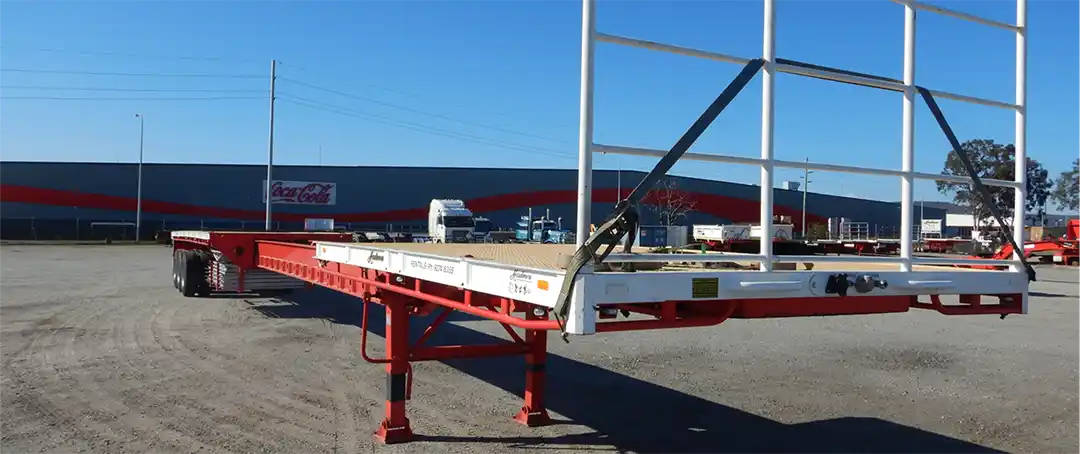

Haulmore Tri Flat Extendable Trailer 13.7 Metres CLOSED – 22.6 Metres OPEN Front end & Rear load rack EBS – Brake System to ADR 38/04 Compliance Two Tool Boxes Cradle Tyre Carrier Removable King Pin Full set of Twist Locks
Inspect this trailer
Screening
Configure
Configure & OrbitOrbit, pan and inspect the 2024 Haulmore Tri Axle Flat Extendable Trailer from every angle.
The numbers
Specifications
Mass & Ratings
| Design rating | 47,000 kg |
|---|---|
| AGG trailer mass | 47,000 kg |
| Tare weight | 9,960 kg |
| Payload | 37,040 kg |
Dimensions
| Deck length | Closed 13.7 m / Open 22.0 m |
|---|
Running Gear
| Tyres | Thirteen (13) |
|---|---|
| Stud count | 10 stud |
| Suspension | Tri leaf 2.7m spread |
| Suspension spread | 2.7m spread |
| Axle configuration | tri-axle |
| Axle count | 3 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |
| Electrical | Multi-voltage |
| Lighting | LED |
Deck & Body
| Floor material | 5mm steel chequer plate |
|---|
Securing & Accessories
| King pin | 90mm |
|---|---|
| Hitch type | ring feeder with brake and electrical connections |
| Bolster pockets | 12 (6 each side) |
Compliance
| Brake/ADR compliance | ADR38/04 |
|---|
Features and use cases
Key features
- Haulmore Tri Flat Extendable Trailer, PRICE: POA
- 13.7 Metres CLOSED – 22.6 Metres OPEN
- EBS – Brake System to ADR 38/04 Compliance
- Two Tool Boxes
- Cradle Tyre Carrier
- Removable King Pin
- Full set of Twist Locks
Built for
Long load transportPipe and beam haulage
Pick your track
Get a quote on the 2024 Haulmore Tri Axle Flat Extendable Trailer
Buy outright or hire it in — tell us the job and the team will come back with pricing and availability. You’re dealing with the maker.
- Buy: new & used, price on application.
