2024 Haulmore ‘Super Duty’ Tri Axle Side Tipper
New For sale Price on application
'Super Duty' tri-axle side tipper with 4 mm Hardox body, 21 m³

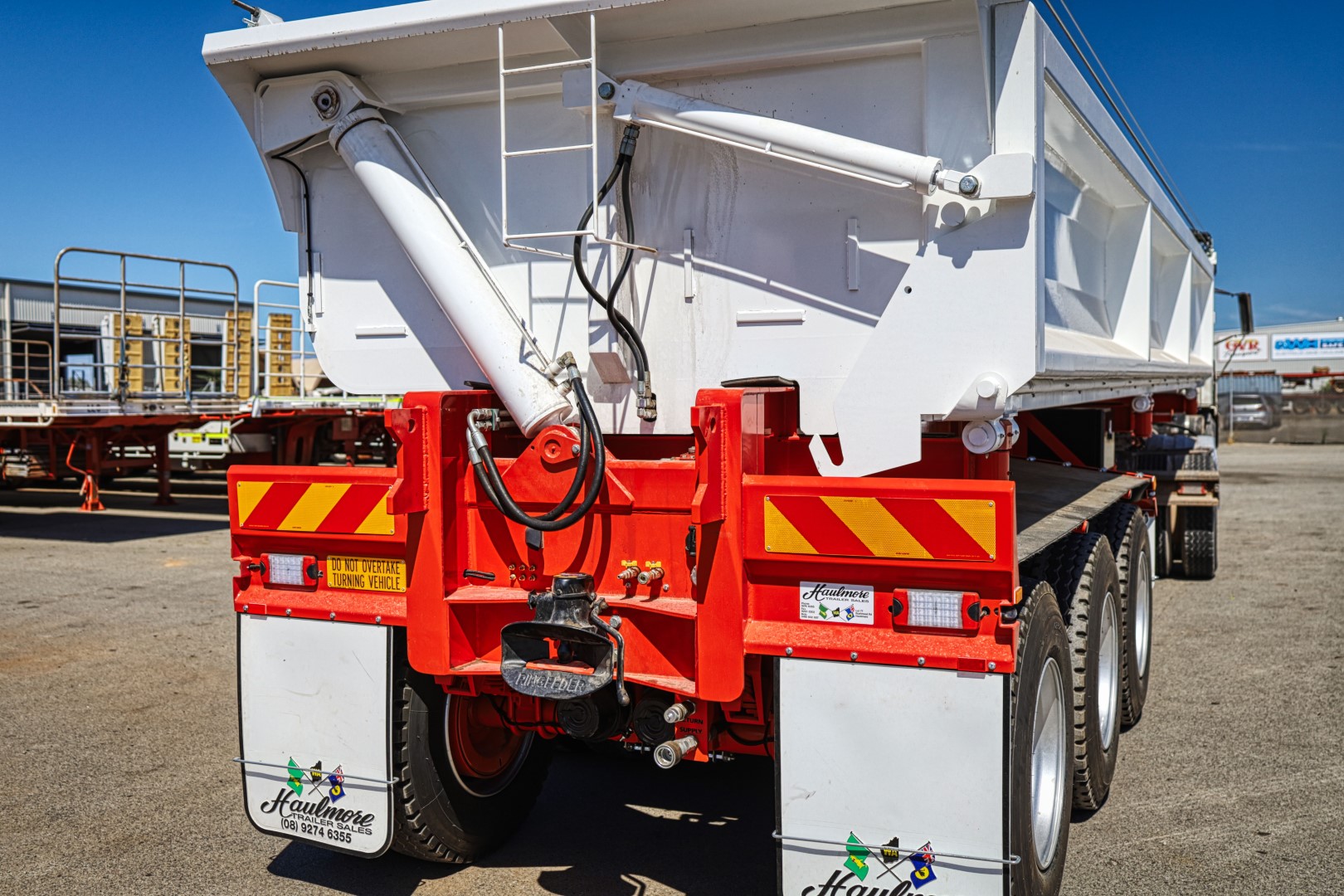

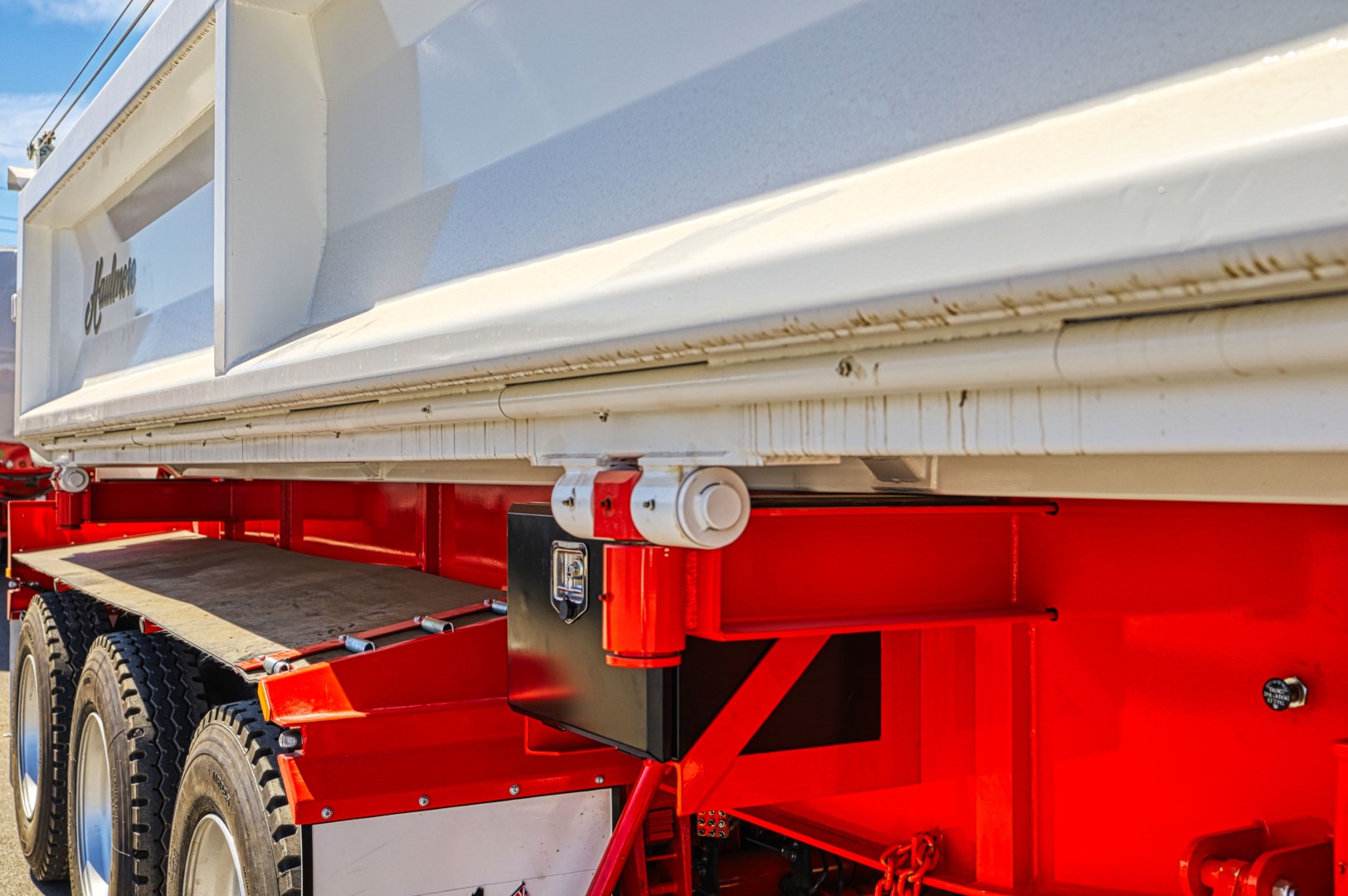

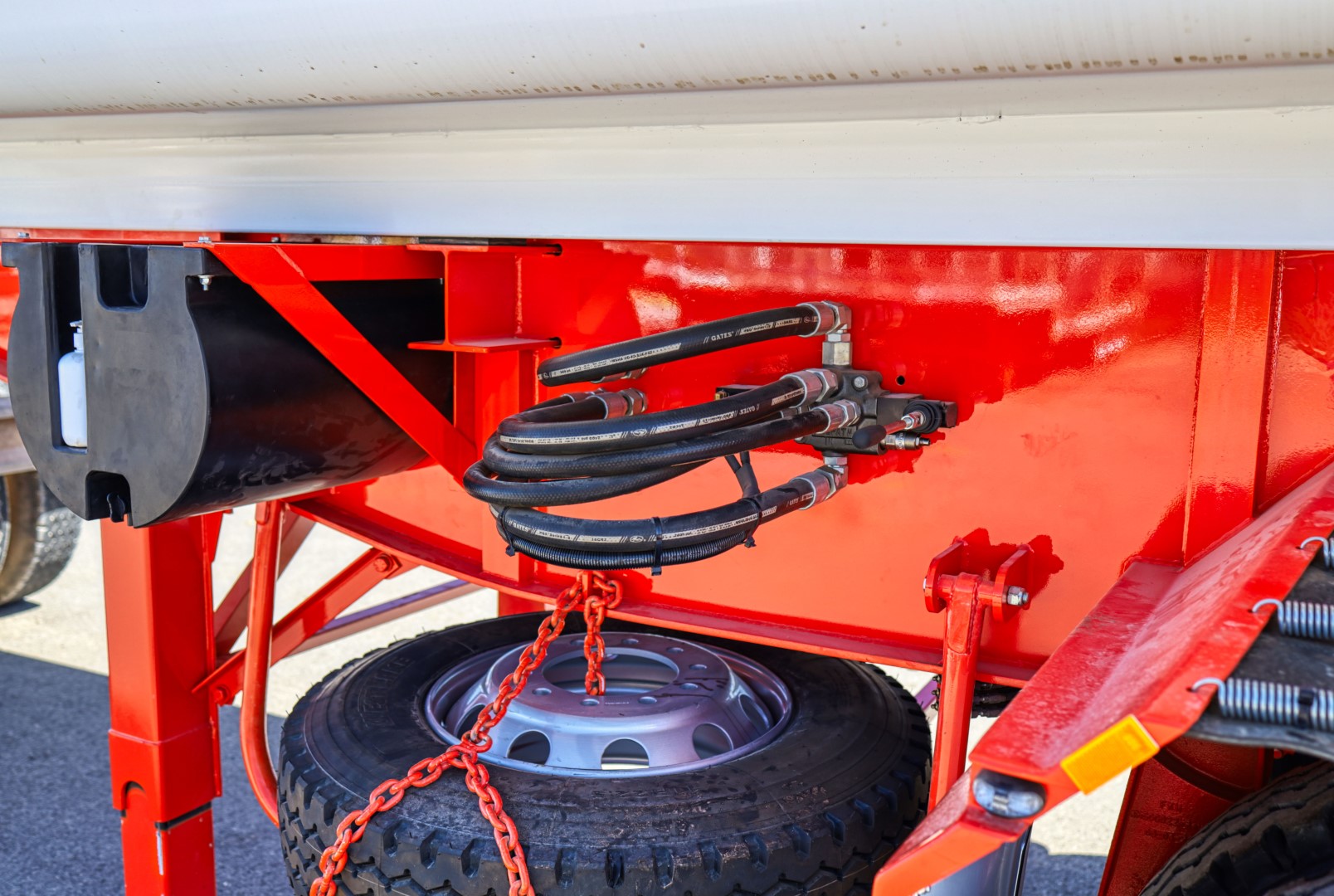

Haulmore “SUPER DUTY” Tri Axle Side Tipping Trailer Body constructed from Hardox Grade 450 High tensile Swedish Steel High Capacity Tipping Rams 150mm Diameter Full length door (piano) hinge Safety lock-on door opening Double Sheer brackets on door hinge Four body floor support beams Dual Tyre carrier Heavy duty landing legs
Inspect this trailer
Screening
Configure
Configure & OrbitOrbit, pan and inspect the 2024 Haulmore ‘Super Duty’ Tri Axle Side Tipper from every angle.
The numbers
Specifications
Mass & Ratings
| Design rating | 47,000 kg |
|---|---|
| Tare weight | 9,100 kg |
Dimensions
| Overall width | 2900mm overall |
|---|---|
| Height of sides | 1000mm |
| Body length (inside) | 9000mm inside |
Running Gear
| Tyres | Thirteen (13) only |
|---|---|
| Stud count | 10 stud |
| Suspension | 9 leaf 2.7m spread |
| Leaf count | 9 leaf |
| Suspension spread | 2.7m spread |
| Axle configuration | tri-axle |
| Axle count | 3 |
Braking & Electrical
| Brake system | Drum brake |
|---|---|
| ABS/EBS | EBS |
| Electrical | Multi-voltage |
| Lighting | LED |
Deck & Body
| Body material | 4mm Hardox GR450 Swedish high tensile plate |
|---|
Capacity
| Body volume | 21 cubic metres |
|---|
Securing & Accessories
| King pin | 90mm |
|---|---|
| Hitch type | ring feeder |
Features and use cases
Key features
- Grade 450 High tensile Swedish Steel
- High Capacity Tipping Rams 150mm Diameter
- Dual Tyre carrier
Built for
Bulk material haulageMiningAggregate cartage
